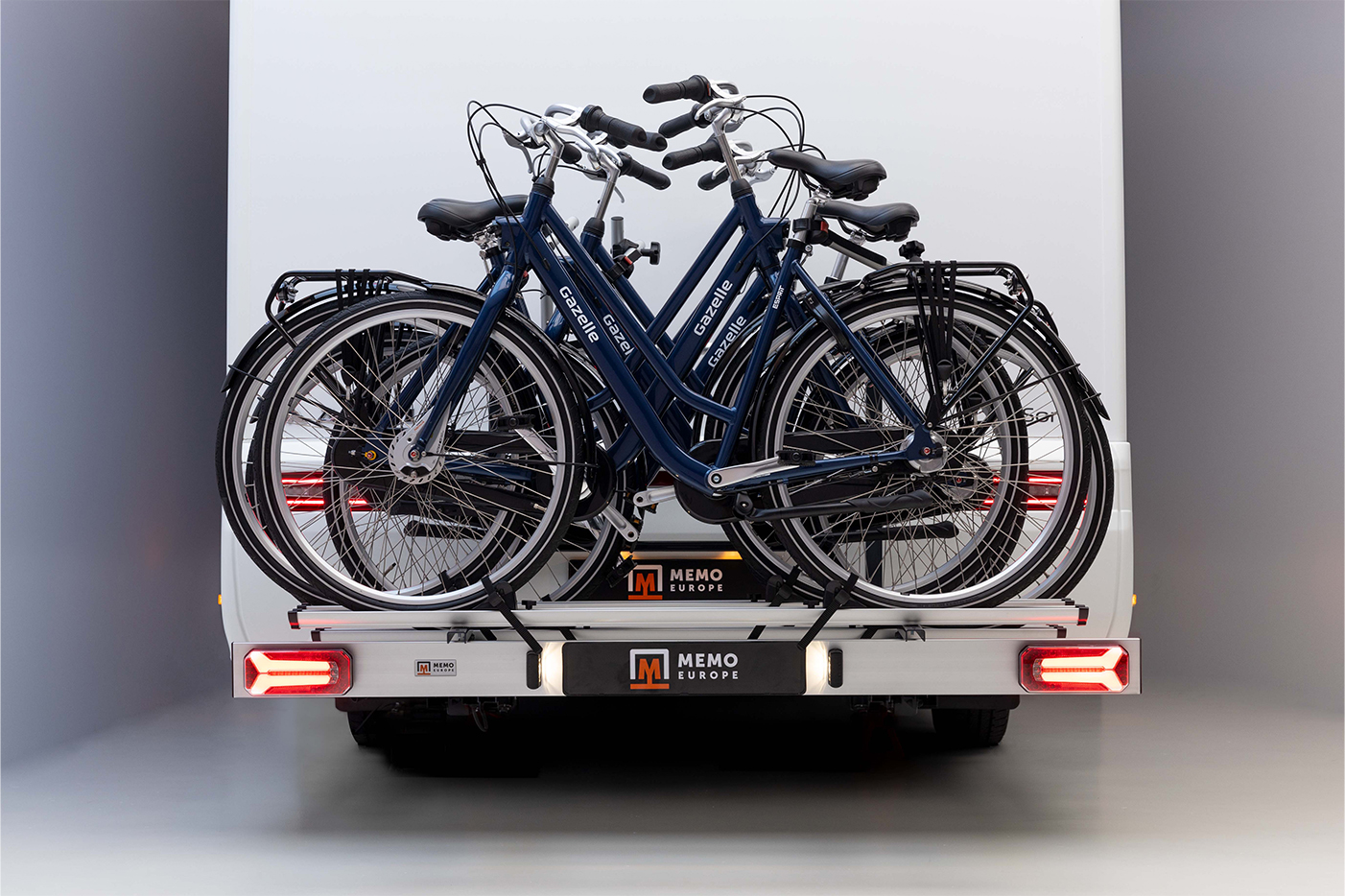

Zorro 4Bike foldable bike carrier

For 4 bikes
Article number: 251602

  • Ideal for E-bikes
  • Chassis mounting for extra stability
  • European type approval
Full description
suggested retail price

Questions about this bicycle carrier THE MEMO DEALER IS GLAD TO ADVISE YOU!

By telephone, e-mail or in person in the showroom.

GET ADVICE

IS THIS PRODUCT SUITABLE FOR YOUR motorhome? CHECK IT RIGHT NOW!

Is your brand, type or year not listed? Let us know and we will look for it which products are suitable for your camper.

  • 1
  • 2
  • 3
  • 4
  • 5

ZORRO 4BIKE:  SAFELY ON TH EROAD WITH FOUR E-BIKES ON THE BACK OF YOUR MOTORHOME

E-bikes are actually too heavy for regular bike carriers. Let alone four E-bikes! In addition, many bike carriers are mounted on the rear wall of a motorhome, so that you have to lift much too high. Recognizable? The Zorro 4Bike offers the solution to this problem.

With this foldable bike carrier you can transport four electric bikes (up to 150 kg). And it is mounted at knee height. Directly on the chassis, for extra stability. Optionally, the Zorro 4Bike is also available with a modern LED light strip.

Mounting on the chassis

The Zorro 4Bike can be mounted directly on the AL-KO motorhome chassis or a chassis extension. You can contact a Memo dealer in your area for this. The bike carrier is much more stable on the chassis than on the rear wall or on a towbar.

E-bikes at knee height

Because of the mounting on the chassis, your e-bikes are at knee height. So lifting high is no longer necessary. Remove your bikes from the carrier even more easily? With our optional ramp you can drive your bikes on and off the carrier in no time. Ask your Memo dealer about it.

Fasteners

Cycling shoes and bicycle arms for transporting bikes or e-bikes are included as standard. For safety, we recommend that you always use a lashing strap. The Memo dealer will be happy to advise you on suitable fasteners for your type of e-bike.

Tilting light strip

When you are not using the Zorro 4Bike, you can easily fold it up. The light strip tilts along, so you do not have to take any extra action. When folded up, the carrier is about 40 centimeters shorter.

European type approval

The Zorro 4Bike has a European type approval. You are guaranteed to be safe on the road.

Dimensions
Chassis width Max 1420 mm
Light bar width 1950 mm
Bike rails width 1670 mm
Depth folded up approx. 35 cm
Depth folded down approx. 85 cm
Weight
Payload

150 kg (suitable for 3 e-bikes of bicycles)

Own weight 40 kg
Materials
Rails and bracket Aluminium
Construction Powdercoated steel
Lighting and wiring
Ligting Aluminium light bar with halogen lamps
Optional LED lighting
Wiring 13-pin Jaeger socket
